Flood Light AC and Solar

The LED flood light point light source is an irradiated uniformly in all directions, it illuminated area can be adjusted in the scene showed the icon of a regular octahedron. The flood light is in effect, making them the most widely used as a light source, standard floodlights used to illuminate the entire scene.  The LED Flood light in the scene can be applied to produce better results. The flood light in effect diagram application of the most widely used as a light source, the scene with floodlights coordinating role, to the birth of the good results. From a specific point in all directions uniformly illuminated objects, and use it to simulate the light bulbs and candles but the best. Flood light can be placed in the scene anywhere. For example, can be placed in the camera range outside or inside of the object. Distance in the scene with many different? The colored flood light is very common. These floodlights can be dark projection and mixed model. As flood light irradiation range is relatively large, so flood light irradiation effect is very easy to predict, and this light there are many auxiliary purposes, for example, the flood light is placed in a position close to the surface of the object, the object will be surface on to produce a bright light.

Plants: image 2 0f 4 thumb
Plants: image 3 0f 4 thumb
Plants: image 4 0f 4 thumb
Plants: image 4 0f 4 thumb

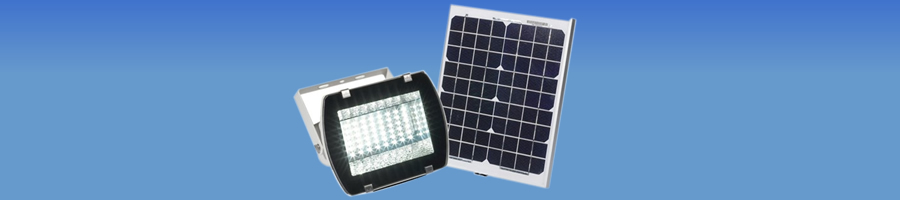

Led Based DC(Solar) Flood Light Luminary
No Of Leds Optics Volts Power
(Watt  ±10%)
Efficiency Luminous Flux
9 Led No Lens 12/24 VDC 20  > 90% > 2000 Lumens
9 Led With Lens 12/24 VDC 20  > 90% > 2000 Lumens
12 Led No Lens 12/24 VDC 26  > 90% >2600 Lumens
12 Led With Lens 12/24 VDC 26  > 90% >2600 Lumens
18 Led No Lens 12/24 VDC 40  > 90% >4000 Lumens
18 Led With Lens 12/24 VDC 40  > 90% >4000 Lumens
24 Led No Lens 12/24 VDC 50  > 90% >5000 Lumens
24 Led With Lens 12/24 VDC 50  > 90% >5000 Lumens
  Led based AC Power Saving Flood/Hording Light Luminary
No Of Leds Optics Volts Power
(Watt  ±10%)
Efficiency Luminous Flux
9 Led No Lens 230 V 22  > 80% >2200 Lumens
9 Led With Lens 230 V 22  > 80% >2200 Lumens
12 Led No Lens 230 V 30  > 80% >3000 Lumens
12 Led With Lens 230 V 30  > 80% >3000 Lumens
18 Led No Lens 230 V 45  > 80% >4500 Lumens
18 Led With Lens 230 V 45  > 80% >4500 Lumens
28 Led No Lens 230 V 70  > 80% >6000 Lumens
28 Led With Lens 230 V 70  > 80% >6000 Lumens
42 Led No Lens 230 V 100  > 80% >10000 Lumens
42 Led With Lens 230 V 100  > 80% >10500 Lumens
56 Led No Lens 230 V 140  > 80% >14000 Lumens
56 Led With Lens 230 V 140  > 80% >14000 Lumens
70 Led No Lens 230 V 175  > 80% >17500 Lumens
70 Led With Lens 230 V 175  > 80% >17500 Lumens
84 Led No Lens 230 V 200  > 80% >20000 Lumens
84 Led With Lens 230 V 200  > 80% >20000 Lumens
