Solar Blinker/Flasher

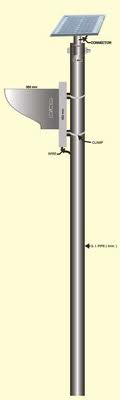

Solar Blinker

Solar Blinker is provided with solar module &remains operational for 24 hrs. The blinker is LED based which acts as a speed indicator.



Benefits

·      Easy to Install

·      High Quality Weatherproof Construction

·      Super Bright LED with Long Life

·      No Cabling & Trench / Road Cut

·      One Time Fit & Forget, Trouble Free Continuous Operation

·      No Electric Connection Required, No Electric Bill

Safety Features

·      System is Completely Shock Proof Due to Low Voltage Circuitry

·      Short Circuit Protection

Plants: image 2 0f 4 thumb
Plants: image 3 0f 4 thumb
Plants: image 4 0f 4 thumb
Plants: image 4 0f 4 thumb

GENERAL
PRODUCT BLINKER 12 Hrs Operation D2D BLINKER 24 Hrs Operation
APPLICATION OUT DOOR OUT DOOR
WORKING TEMPERATURE 5°C TO +50°C 5°C TO +50°C
WORKING HUMIDITY 10% TO 90% 10% TO 90%
LED DATA
LED TYPE 5MM ROUND 5MM ROUND
LED PANEL SIZE 12" (300mm) DIA 12" (300mm) DIA
NO OF LED 140 PCS 140 PCS
COLOUR RED/YELLOW RED/YELLOW
LUMEN EFFICIENCY 30 To 40 LUMEN/WATT 30 To 40 LUMEN/WATT
DISPERSION ANGLE 55 To 60 DEGREE 55 To 60 DEGREE
COLOUR TEMPERATURE 2000 To 4000 °K 2000 To 4000 °K
CRI >75 >75
ELECTRICAL DATA
NOMINAL INPUT VOLTAGE 12V DC OPERATED 12V DC OPERATED
INPUT CURRENT WHEN LED ON < 1A < 1A
TOTAL LED POWER 10W 10W
ELECTRONICS EFFICIENCY 80% 80%
CHARGE CONTROLLER SPECIFICATION
BATTERY LOW CUT OFF VOLTAGE 10.7V(±0.3V) 10.7V(±0.3V)
BATTERY RECONNECT VOLTAGE 11.3V(±0.3V) 11.3V(±0.3V)
OVERCHARGING CUT OFF VOLTAGE 13.8V(±0.3V) 13.8V(±0.3V)
CHARGING RECONNECT VOLTAGE 13.4V(±0.3V) 13.4V(±0.3V)
LOW BATTERY INDICATION RED LED RED LED
CHARGING INDICATION GREEN LED GREEN LED
BATTERY SIZE 12V/26AH SMF 12V/26AH SMF
SOLAR MODULE SPECIFICATION
SPV 30 Watt 40 Watt
MECHANICAL DATA
FIXTURE MAKE METAL SHEET METAL SHEET
IP RATING IP 53 IP 53
POLE HEIGHT 4 METER 4 METER
DIMENSION 420 X 400mm 420 X 400mm
WEIGHT (BLINKER WITH POLE) 42Kg 45Kg
WEIGHT (BLINKER WITHOUT POLE) 25Kg 25Kg

 technichal Click Here For More Technical Specifications
